In-class Exercise 8: Network Data Visualisation and Analysis

1 Loading R Package

pacman::p_load(igraph, tidygraph, ggraph, visNetwork, lubridate, clock, tidyverse, graphlayouts)

2 Dataset

GAStech_nodes <- read_csv("../../data/GAStech_email_node.csv")
GAStech_edges <- read_csv("../../data/GAStech_email_edge-v2.csv")

2.1 Data Preparation

GAStech_edges <- GAStech_edges %>%
  mutate(SendDate = dmy(SentDate)) %>%
  mutate(Weekday = wday(SentDate,
                        label = TRUE,
                        abbr = FALSE))

GAStech_edges_aggregated <- GAStech_edges %>%
  filter(MainSubject == "Work related") %>%
  group_by(source, target, Weekday) %>%
    summarise(Weight = n(),.groups = 'drop') %>%
  filter(source!=target) %>%
  filter(Weight > 1) %>%
  ungroup()

GAStech_graph <- tbl_graph(nodes = GAStech_nodes,
                           edges = GAStech_edges_aggregated,
                           directed = TRUE)

GAStech_graph

# A tbl_graph: 54 nodes and 1372 edges
#
# A directed multigraph with 1 component
#
# Node Data: 54 × 4 (active)
      id label               Department     Title
   <dbl> <chr>               <chr>          <chr>
 1     1 Mat.Bramar          Administration Assistant to CEO
 2     2 Anda.Ribera         Administration Assistant to CFO
 3     3 Rachel.Pantanal     Administration Assistant to CIO
 4     4 Linda.Lagos         Administration Assistant to COO
 5     5 Ruscella.Mies.Haber Administration Assistant to Engineering Group Mana…
 6     6 Carla.Forluniau     Administration Assistant to IT Group Manager
 7     7 Cornelia.Lais       Administration Assistant to Security Group Manager
 8    44 Kanon.Herrero       Security       Badging Office
 9    45 Varja.Lagos         Security       Badging Office
10    46 Stenig.Fusil        Security       Building Control
# ℹ 44 more rows
#
# Edge Data: 1,372 × 4
   from    to Weekday Weight
  <int> <int> <ord>    <int>
1     1     2 星期日       5
2     1     2 星期一       2
3     1     2 星期二       3
# ℹ 1,369 more rows

3 Visualisation

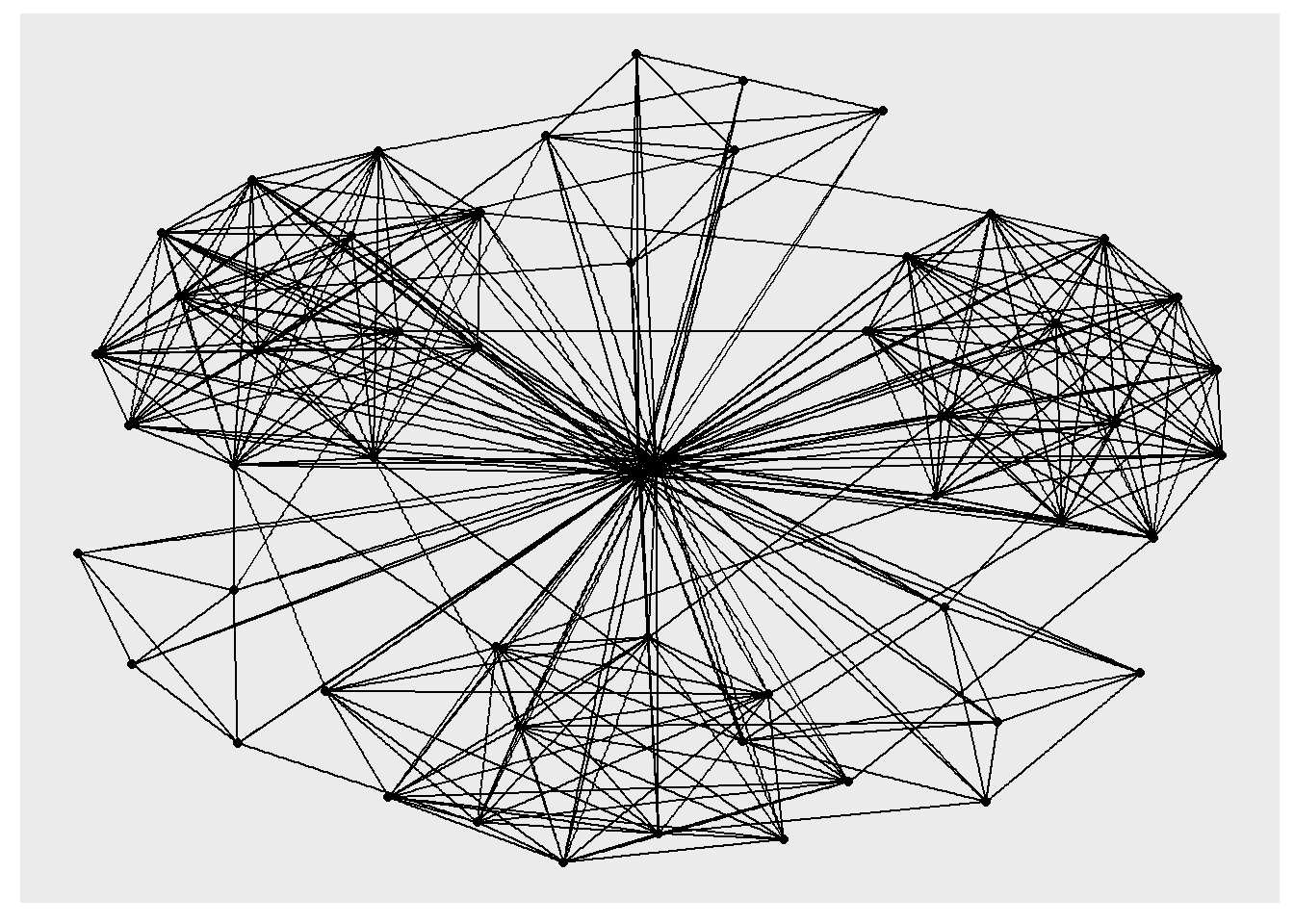

ggraph(GAStech_graph) +
  geom_edge_link() +
  geom_node_point()

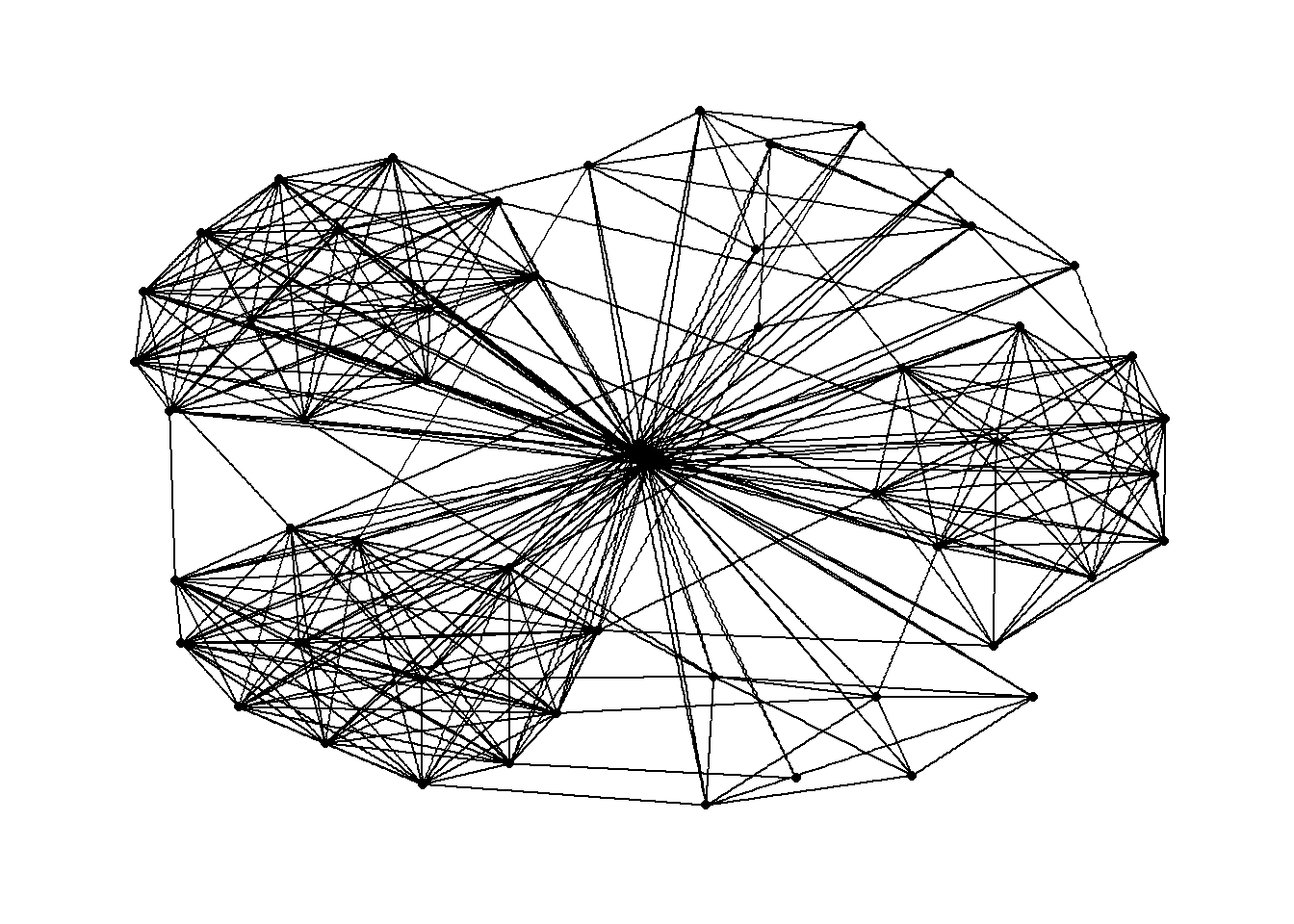

g <- ggraph(GAStech_graph,
            layout = 'kk')+
  geom_edge_link(aes()) +
  geom_node_point(aes())

g + theme_graph()

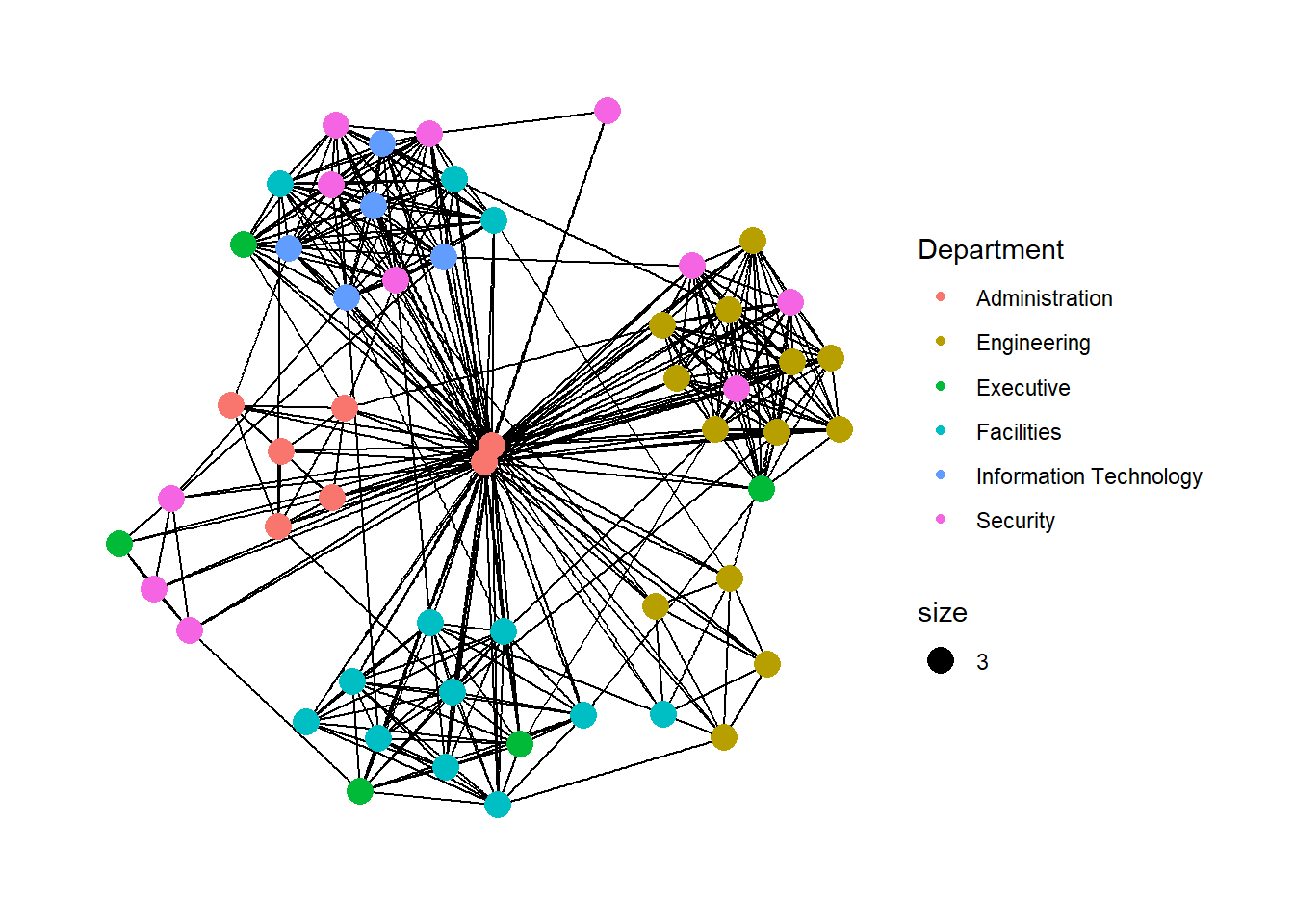

g <- ggraph(GAStech_graph,
            layout = 'nicely')+
  geom_edge_link(aes()) +
  geom_node_point(aes(colour =
                        Department,
                      size = 3))

g + theme_graph()

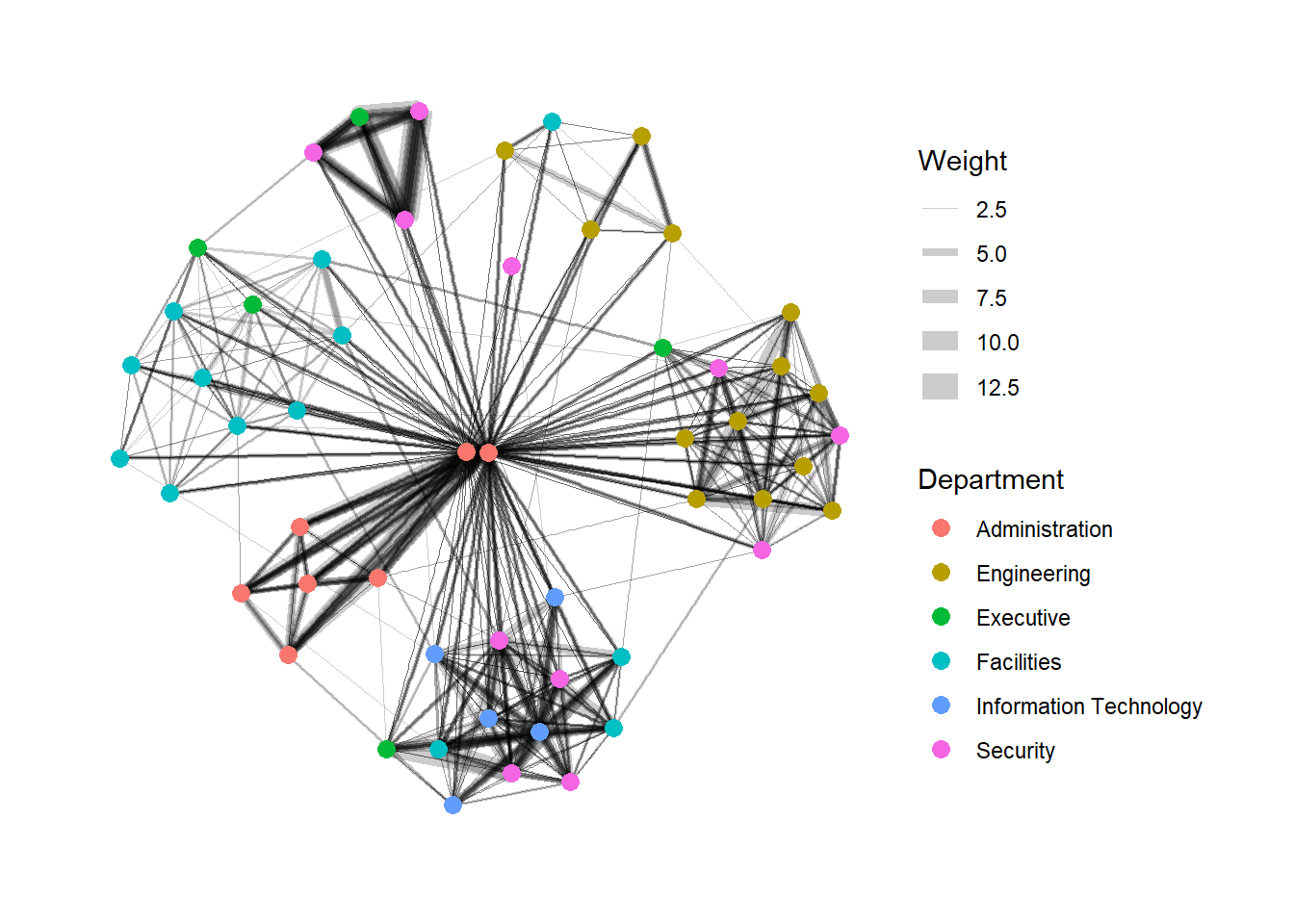

g <- ggraph(GAStech_graph,
            layout = "nicely") +
  geom_edge_link(aes(width=Weight),
                 alpha=0.2) +
  scale_edge_width(range = c(0.1, 5)) +
  geom_node_point(aes(colour = Department),
                  size = 3)

g + theme_graph()

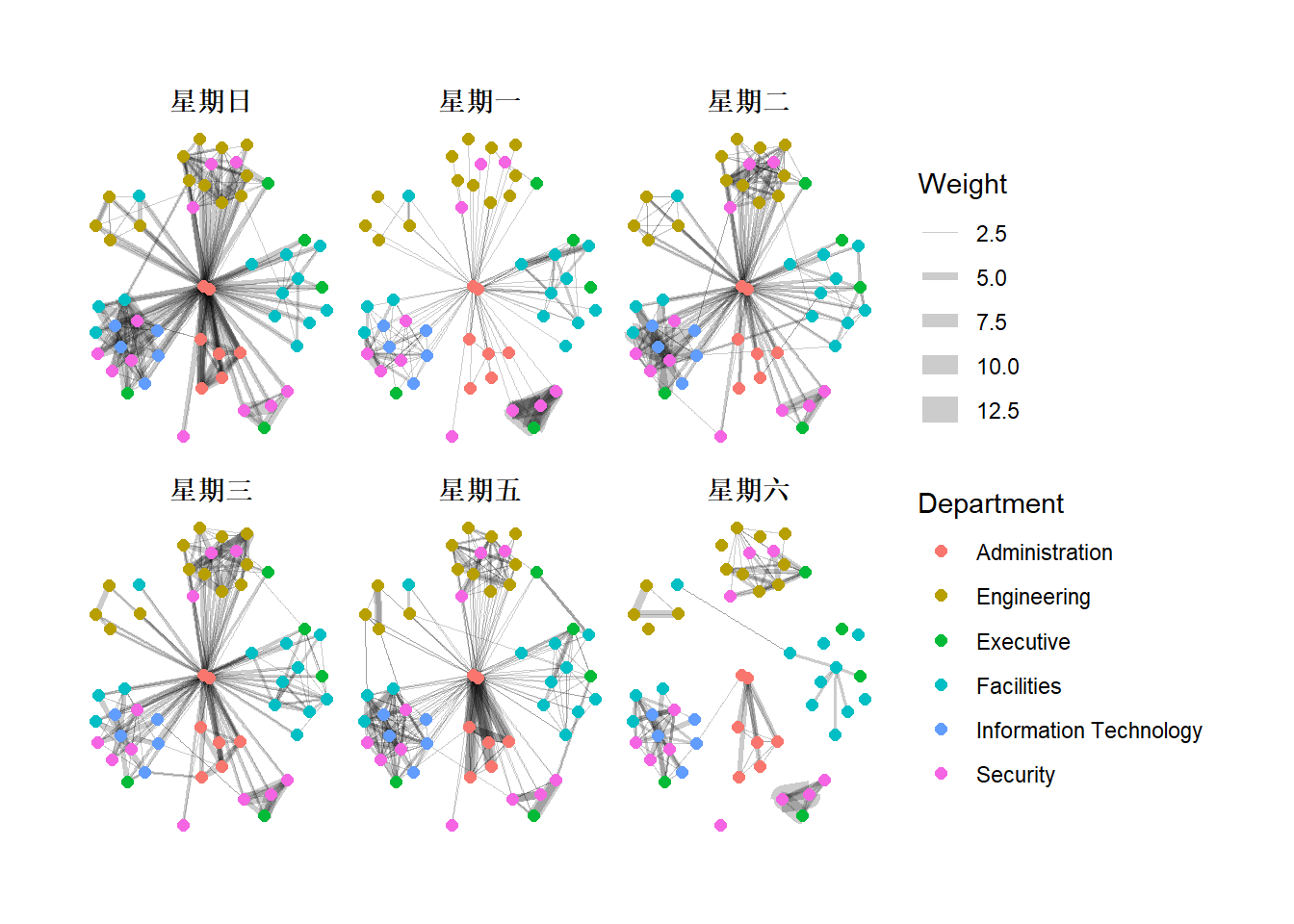

set_graph_style()

g <- ggraph(GAStech_graph,
            layout = "nicely") +
  geom_edge_link(aes(width=Weight),
                 alpha=0.2) +
  scale_edge_width(range = c(0.1, 5)) +
  geom_node_point(aes(colour = Department),
                  size = 2)

g + facet_edges(~Weekday)

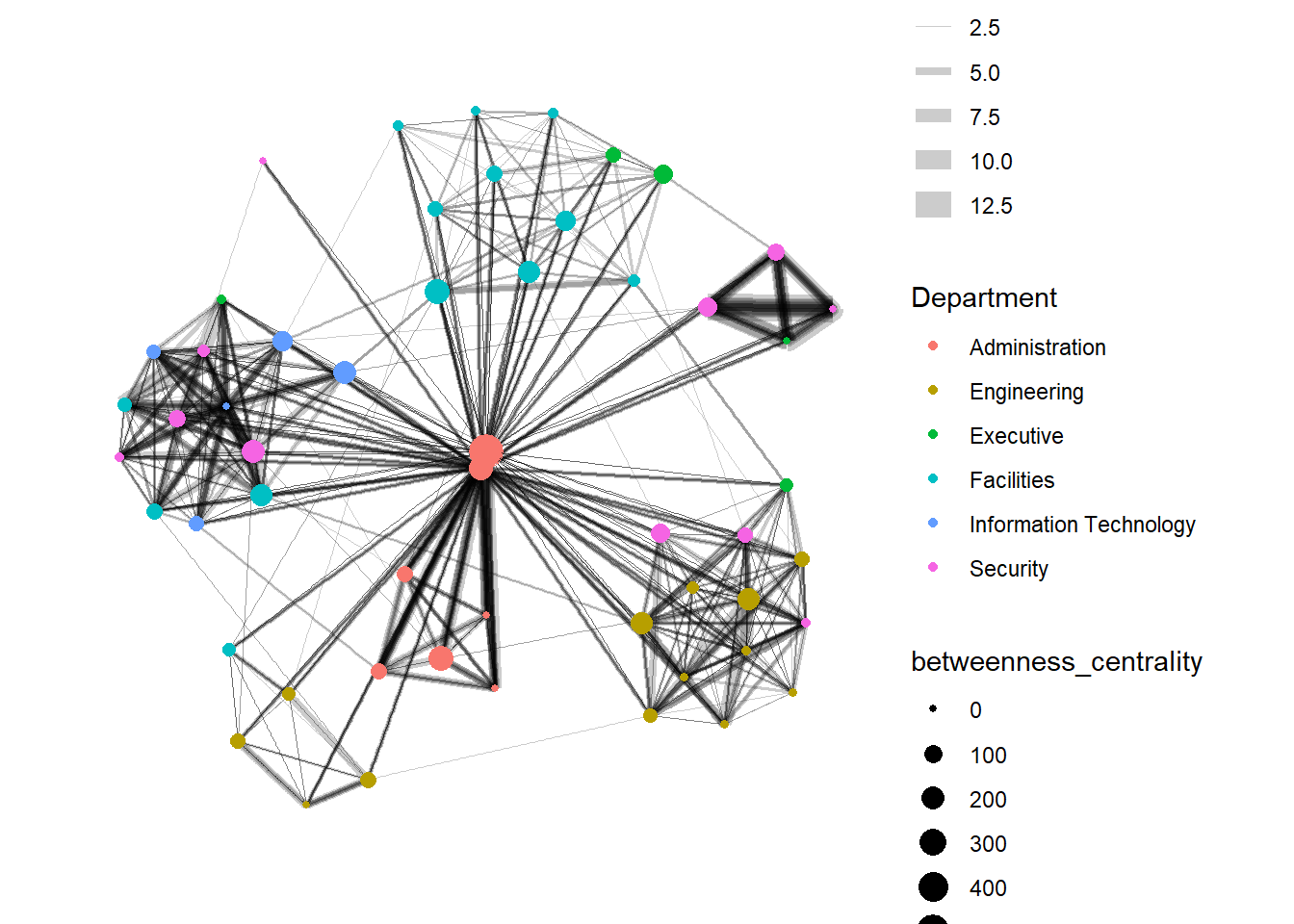

g <- GAStech_graph %>%
  mutate(betweenness_centrality = centrality_betweenness()) %>%
  ggraph(layout = "fr") +
  geom_edge_link(aes(width=Weight),
                 alpha=0.2) +
  scale_edge_width(range = c(0.1, 5)) +
  geom_node_point(aes(colour = Department,
            size=betweenness_centrality))
g + theme_graph()
